Introduction: Real Sites, Real Loads, and a Bigger Question

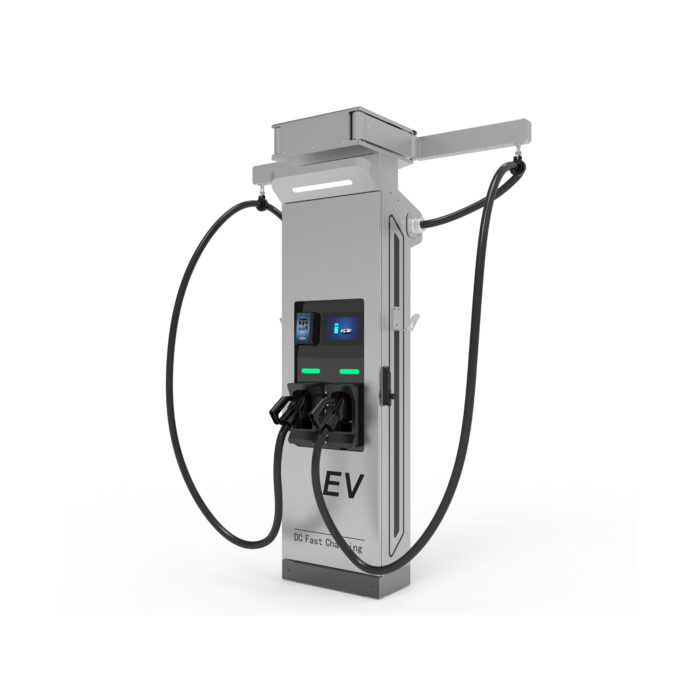

Fast charging isn’t a luxury anymore—it’s the baseline for busy sites. Today, many sites weigh split EV charger 20 /smart split charger 30 as they design hubs and fleets. Picture a roadside plaza at 6 p.m., four SUVs lined up, drivers eager to leave in minutes. With the High power EV charger 70, a single stall can surge past 300 kW, yet the local feeder and switchgear have limits. Data says most drivers expect a plug in under 5 minutes and a 10–20 minute dwell, but peak demand spikes crush capacity planning. So how do we keep uptime, speed, and cost in balance?
Here’s the rub: more power doesn’t always mean faster turns. It means smarter power. Many hubs run into stranded capacity, heat issues, and messy cabling (been there). Edge computing nodes can help, but only if the hardware and software talk well. Add in OPEX creep from cooling and maintenance, and the math gets tight. The question is simple: which split class—20 or 30—actually delivers stable throughput, not just big numbers on a spec sheet? Let’s step past the hype and look at what fails first, and why.
Deeper Layer: Why Traditional Fast Charging Struggles at Scale
What breaks first?
Legacy monoblock fast chargers look strong on paper. In practice, they leave capacity idle during uneven sessions and hot days. Single-cabinet designs bottleneck power through one set of rectifier modules and power converters. Heat builds, fans scream, and throttling kicks in. That’s wasted minutes and lost revenue—funny how that works, right? When four bays need bursts at once, rigid allocation makes one car soak power while others wait. Harmonic distortion rises, and upstream switchgear gets oversized “just in case.” The result is heavy CAPEX now and higher OPEX later.
Look, it’s simpler than you think. The pain isn’t just raw kW, it’s orchestration. Without dynamic load balancing on a shared DC bus, sessions fight for the same electrons. Cables run longer, pressure on connectors grows, and thermal drift cuts peak output. Technicians chase alarms because monitoring is siloed. If the system can’t share power among stalls or route it where it’s needed, uptime and driver satisfaction both drop. Even with a High-power tier, the experience feels slow. That’s why sites start eyeing split architectures, where controllers, cabinet modules, and dispensers decouple for better routing and serviceability.
New Principles: How Split Architecture Changes the Game
What’s Next
Split systems start with a simple idea: pool modules and route power on demand. In a 20‑class split, cabinet blocks feed multiple posts through a shared DC busbar. In a 30‑class, you add more module density, smarter scheduling, and faster comms. Edge computing nodes coordinate rectifier modules, so a single overstay doesn’t starve neighbors. Liquid cooling keeps thermal headroom stable. OCPP and site controllers predict session ramps, pre-stage power, and move it between stalls in milliseconds. Think software-defined power. As traffic patterns shift—fleet vans at 7 a.m., commuters at 6 p.m.—the system tunes itself. And when you need more, you scale cabinets, not trenches.
This is where large-format hubs lean toward the 30‑class. The control layer can prioritize based on SOC curves, vehicle limits, and grid price signals. It even pairs with a battery buffer to shave peaks. A reference like split charger 1300 shows how dynamic routing turns “nameplate” into real throughput. Compare that to static blocks: fewer slowdowns, fewer service calls, and a flatter thermal profile. Here’s a quick way to judge fit for your site—technical, but practical. 1) Power orchestration: Does it offer real-time module pooling, fast reroute, and per-stall limits? 2) Thermal behavior: Can cooling keep modules at stable output without early throttling? 3) Grid fit: Does it support peak shaving, staged start, and upgrade paths without new switchgear? Nail those, and you get measurable gains in session times and uptime. Advisory end note: test with varied vehicles and set KPIs for kWh per stall-hour, not only kW. Then iterate. That’s how modern hubs win with brains over brute force—with a little patience, too. For deeper specs and platform options, see winline charger.
