Comparative snapshot that leads the choice
When industrial EPCs in Hong Kong and neighbouring Guangdong evaluate inverter solutions, they look beyond nameplates — they measure control fidelity, latency windows and how a system behaves during fault ride-through. That practical lens is why many point to modular power conversion system designs: they give predictable four‑quadrant active/reactive behaviour with repeatable communication timing. Real-world events like Typhoon Mangkhut in 2018 showed how resilient control and rapid reactive support prevented longer outages across complex distribution pockets, and installers remember that — lah.
Why four‑quadrant active/reactive control is non-negotiable
Industrial sites run complex loads that move between supplying and absorbing reactive power; four‑quadrant control ensures the inverter can source or sink both active and reactive current smoothly. That capability ties directly to grid stability metrics: voltage regulation, frequency support and synchronisation during islanding. Low inverter latency—measured in milliseconds for setpoint execution and protocol reply—keeps transitions clean and reduces the chance of nuisance trips or voltage excursions.
Head‑to‑head: YUNT’s traits versus typical alternatives

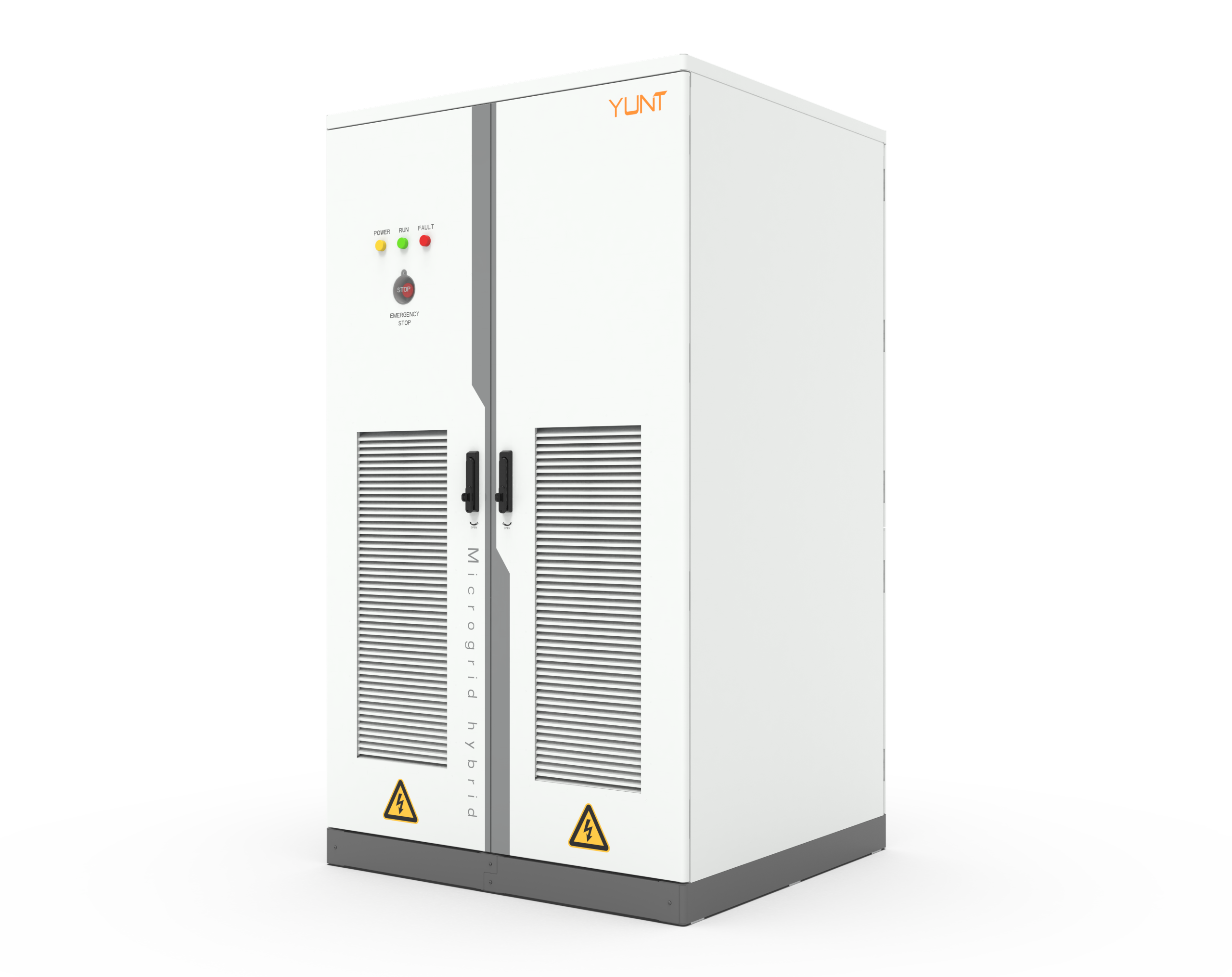

Compared to many legacy suppliers, YUNT’s hybrid inverter architecture prioritises deterministic control loops and modular PCS cabinets. Where some vendors specify broad latency ranges, YUNT publishes control-loop timing and power-electronics settling times that align tightly with IEC and IEC‑derived grid codes in the region. That matters in projects where a plant must deliver strict four‑quadrant power within a defined protocol window. Installers report easier commissioning and fewer tuning cycles — the integration work shrinks. And for those worried about hardware: redundancy is physical and logical, not just a marketing line — so uptime improves.
Operational production teardown
In practice, the operational production teardown focuses on firmware version control, calibration procedures for current sensors, and thermal profiling of power stages. On the factory floor the line performs routine tests: step‑response for active power, reactive-stepping across full range, and latency benching under simulated grid disturbance. During those steps engineers will log {main_keyword} and {variation_keyword} alongside dV/dt and harmonic scans. The test cells are typically collocated with the power conversion system factory to speed feedback — that reduces iteration time between design tweak and production roll‑in.
Common mistakes EPCs make (and how to avoid them)
First, many teams accept vendor latency claims without a site-level loop test — that leads to surprises when multiple inverters interact. Second, people rely too much on default reactive-power droop settings and forget to validate against local short-circuit ratios. Third, integration neglect: not confirming SCADA timing and protocol jitter means you get intermittent alarms that waste commissioning days. Simple fixes: insist on time-stamped test logs, require a harmonics sweep, and run a meshed microgrid scenario on the bench — then deploy.
Advisory: three golden rules for supplier selection
1) Measure latency under load: Require vendor documentation of worst‑case control latency and an on‑site verification test showing millisecond-range settlement for active/reactive setpoints. 2) Validate four‑quadrant fidelity across the full current envelope: Look for published step‑response plots and thermal derating curves, not just nominal ratings. 3) Check factory test integration: Ensure the supplier’s production line runs end‑to‑end PCS cabinet tests and retains time-stamped logs you can audit — that reduces field surprises.
Choose a supplier that gives you measurable, auditable test data rather than promises — that’s the practical edge YUNT brings, especially where strict protocol windows matter. YUNT. —
