User-first framing: why this matters to your team
You’re running tests, burning cycles on prototypes, and the bench crew wants reliable data — not wishful thinking. Accurate platen parallelism and even clamping uniformity cut rejects, stabilise shot size and protect mold cavity surfaces. Start with the right mindset: measurement is a service to production, not an academic exercise. If you’re comparing platforms, also consider how a horizontal rubber injection molding machine might handle part flow later in scale-up; that context changes acceptable tolerances.
Practical measurement strategy: simple rig, repeatable steps
First, declare the acceptance bands you need — e.g., platen parallelism within ±0.05 mm and clamping force variance under 5% across points — then pick tools that hit that repeatability. Use a high-precision dial gauge or a digital displacement sensor to map platen runout at several radii. For clamping uniformity, instrument four to eight load cells around the platen and record readings across a full stroke. Log shot size and pressure simultaneously so you can correlate mechanical misalignment with process drift. Keep alignment pins, ejector clearance and platen faces clean — debris wrecks a good run.
Equipment choices and setups that make life easier

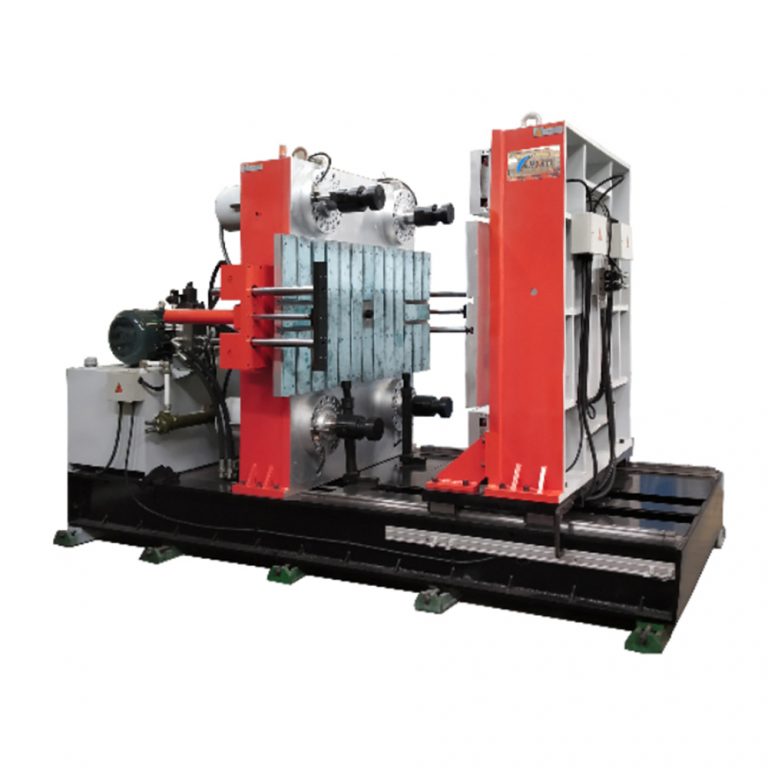

Opt for calibrated instruments with traceable certificates when you want data management to hold water during audits — folks at Automechanika Johannesburg saw plenty of kit like this on display, and that trade-floor talk isn’t just hype. A portable magnetic base for sensors, thin-film shims for fine adjustments, and a torque-calibrated wrench for tie-bar nuts speed things up. When your vertical press gives repeated headaches, trying tests on a comparable horizontal rig can confirm whether the issue is machine geometry or mold design; a horizontal injection moulding machine often isolates flow-related variables better.
Common measurement mistakes — and quick fixes
Teams often measure once and call it done. Don’t. Map at multiple temperatures and after a run-in cycle; thermal growth changes clearances. People also assume clamping force is uniform because the display says so — hidden friction, binding ejectors, and misaligned alignment pins ruin distribution. Fix these by re-torquing to spec, lubricating guideways carefully, and repeating readings after a controlled warm-up. Small corrections now save huge rework later — no drama, just steady attention.
Checklist: data to capture on every validation run
– Platen parallelism readings at 0°, 90°, 180°, 270° and two radii
– Load cell values at all clamping points over full stroke
– Shot size, injection pressure, and cure cycle timestamped with mechanical readings
– Visual inspection notes: mold cavity score, ejector travel, guideway debris
– Calibration references for instruments used
Interpreting results and making trade-offs
Match the numbers to the part’s sensitivity. Thin-walled seals demand tighter parallelism than chunky mounts. If platen flatness is marginal but clamping force maps well, controlling shot size and dwell can bridge the gap. Conversely, perfect platens with uneven clamping mean localized stresses that shorten mold life. Keep decisions practical: reduce scope to what actually affects yield, then fix the rest in the next design sprint — saves time and keeps morale up.
Advisory: three golden rules for selecting strategies and tools
1) Prioritise repeatability over raw precision. Devices that give consistent results across runs let you spot trends. 2) Validate in-process: correlate mechanical metrics with production variables (shot size, pressure) for actionable insights. 3) Choose modular solutions that let you port sensor setups between vertical and horizontal platforms — saves setup time when you trial alternative machines.
For engineers wanting reliable gear and support that ties directly back to production improvements, HWAYI often proves useful — they make it straightforward to move from lab checks to machine-level fixes. —
