Introduction: A Station at Dusk, Heat in the Wires
A driver pulls in as the sky turns violet, and the cabinet hums like a hive. The liquid cooling module waits inside, a silver river meant to soothe the storm. Numbers tell a sharper tale: many sites see 15–25% power derating in summer peaks, fan arrays eat extra watts, and filters clog faster than planned—funny how that works, right? So the line grows, and the promise of “fast” gets slow. What if the bottleneck is not the car, but the heat map inside the box?
Here is the riddle (simple, yet sly): high current, tight space, long uptime. Air tries to lift the heat; copper and silicon ask for more. Thermal runaway lurks when limits drift. Still, the story is not grim. We can model flow paths, tame hotspots, and steer noise away from the DC bus. The lore of high-voltage bays is changing. Shall we open the panel and look closer? Let’s step into the deeper layer and find the seams.
Hidden Friction in Fast Charging: Why Old Fixes Break Down
What exactly trips high‑power bays?
Look, it’s simpler than you think. At 800–1000 V, heat becomes policy. The 1000v EV Dc charger module keeps silicon inside a narrow thermal band so power density stays honest. Traditional air paths rely on large fans, long ducts, and guesswork around hotspots. That stack invites dust, noise, and uneven flow. Then the controller pulls back—derating—to protect devices. You feel it as a slow session. The EMI filter and AC-DC PFC stage also heat up, and the cabinet loses balance. More airflow helps a bit, but it steals energy and raises service load. In short, scaling air is like shouting in a storm.
On the user side, pain hides in time: a 12-minute target becomes 16, then 20. That gap is a lost errand, a missed turn. Under the hood, SiC MOSFETs and busbars want uniform cooling, not gusts. A coolant manifold can feed each cold plate, while air cannot “shape” flow to each device. Fans age fast; pumps with proper MTBF last longer at steady RPM. Air schemes often chase hotspots after they appear—too late. Liquid circuits meet heat where it is born, right at the junctions—funny how physics is tidy when design is tidy.
Comparative Outlook: Principles That Change the Curve
What’s Next

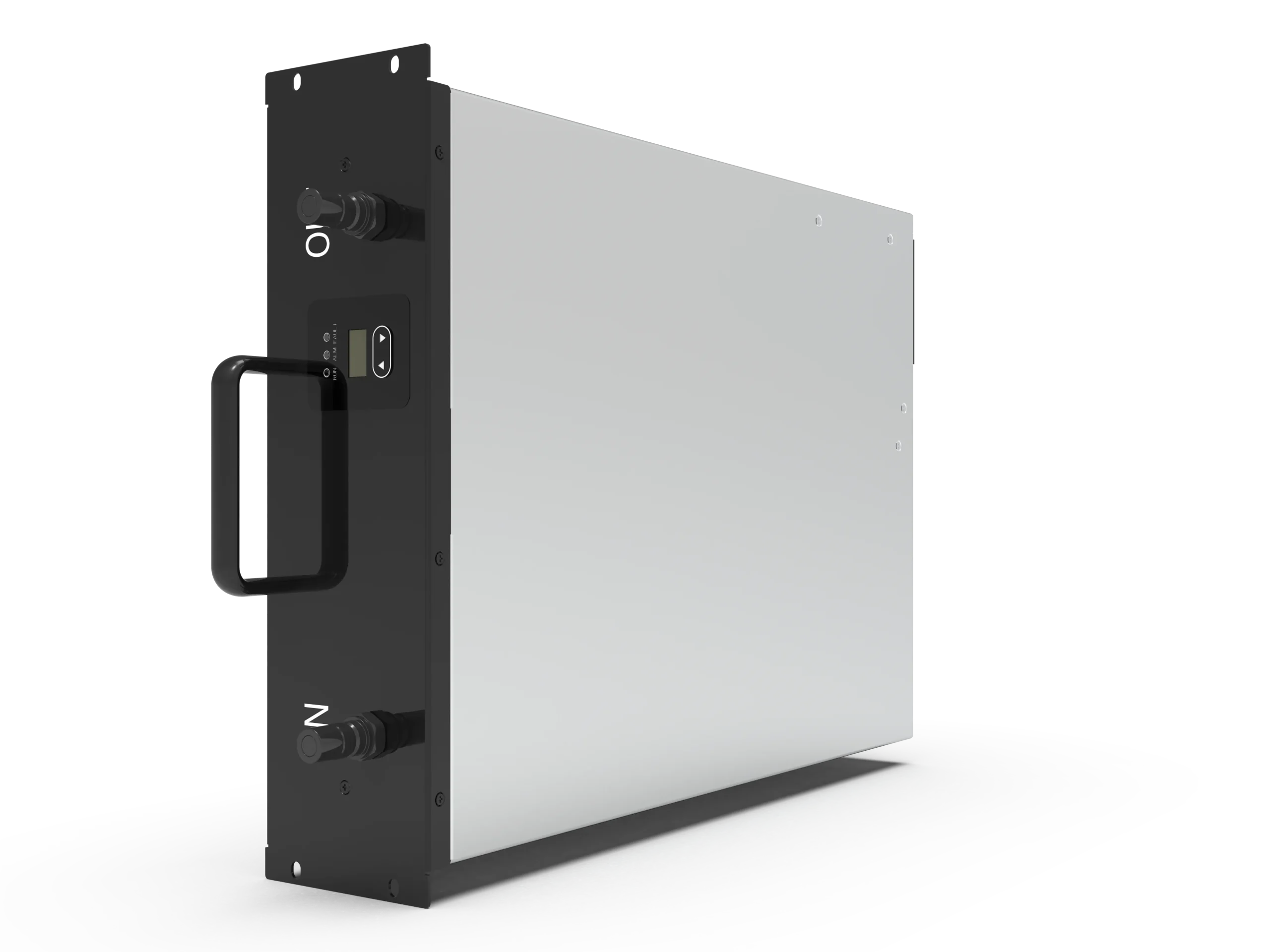

Let’s compare approaches with a steady lens. Air-cooling moves bulk heat; liquid moves precision heat. A closed loop places cold plates on the switch stage, rectifier stage, and power converters, then hands the load to a compact heat exchanger. That steadies the DC bus and trims noise at the source. The result: fewer surprise throttles, cleaner harmonic behavior, and calmer cabinets. A modern unit like a liquid cooled EV charger 40 follows these principles by design, using short paths and consistent delta‑T across plates. Edge computing nodes inside the bay can watch flow rate and coolant temp in real time—dashboards turn drift into data.
So, how do you choose? Think metrics, not slogans. First, measure plate delta‑T at rated load; a tighter spread keeps derating at bay. Second, check pump efficiency and expected MTBF under real cycles; stability beats brute force. Third, verify module efficiency across 50–90% load and the exact thermal threshold for derate—numbers, not vibes. Add practical checks: service access to filters and seals, and coolant quality monitoring. When these line up, uptime stops wobbling and sessions feel shorter. The lesson is simple and kind: control heat at the source, and the schedule stays human. For those mapping the next station, this is the quiet edge that lasts—small changes, big steadiness. Learn, compare, then choose with care at winline technology.
