Why a framework beats guesswork
When you’re sizing a modular energy storage system, you want a repeatable route—not just gut calls. This framework lays out how to balance round-trip efficiency (RTE) against thermal stability so your project meets performance goals and stays safe in the real world. If you’re designing for long-duration projects or utility-scale projects, start by looking at proven deployments of utility scale battery storage and learn what held up under stress. Folks remember the Texas February 2021 winter storm for a reason—systems that weren’t specified for the mission failed under extreme conditions—and that’s a high-level lesson for any spec sheet.
Core specs you can’t fudge
There are three technical pillars you gotta nail: energy performance, thermal resilience, and controls. RTE tells you how much energy you actually get back; thermal stability covers how the pack behaves across ambient swings and whether you’re likely to see thermal runaway; and the battery management system (BMS) ties the two together, protecting cells and managing state-of-charge (SoC) windows. Keep those pillars front-and-center when you write requirements or evaluate vendors.
A compact, repeatable framework (step-by-step)
Use this checklist-style approach during design and procurement:
- Define mission profile: peak power, discharge duration, cycles per day, and expected SoC range.
- Set RTE targets by mission: higher for arbitrage, slightly lower can be acceptable for long-duration shifting.
- Specify ambient and operational temperature envelopes; include worst-case extremes and transient events.
- Choose cell chemistry and module architecture to match the thermal envelope (e.g., LFP for thermal robustness, NMC for higher energy density and often higher RTE).
- Design thermal management: active liquid cooling, forced air, or passive conduction depending on module density and site constraints.
- Define BMS functions: cell-level monitoring, fault isolation, and fast disconnects for safety and grid compliance.
- Require verification: performance tests, thermal imaging under full-rate cycling, and a documented failure-mode analysis.
- Plan integration with grid controls and inverter specs so your grid power storage dispatch behaves predictably in the control stack.
Common design mistakes (and the quick fixes)
Engineers and project owners tend to fall into the same traps. Don’t skimp on environmental testing—ambient extremes change RTE and stress cell interconnects. Folks also over-prioritize peak RTE in lab conditions while ignoring day-to-day thermal losses; that gives you a shiny number on paper but disappointing field energy. And for pete’s sake, don’t accept vague BMS requirements—spec response times, isolation behavior, and telemetry explicitly. If you’re short on time, make testable acceptance criteria part of the contract—samples tested on-site with your inverter will save months. —
Trade-offs: examples that help you choose
Here’s how the knobs usually trade off in practice:
- Cell chemistry: LFP tends to be thermally stable and tolerant of wide SoC ranges, but a touch lower in energy density. NMC gets you higher RTE for some duty cycles but demands stricter thermal control.
- Cooling approach: Passive systems simplify ops and lower failure modes, yet active cooling can preserve RTE at high-power duty cycles—at the cost of complexity and parasitic losses.
- Modularity: Containerized modules let you scale fast and replace faulty strings quickly; rack-level designs can be denser and cheaper per kWh but complicate in-field swaps.
Those are choices you’ll make based on site constraints, capital limits, and the operational profile you defined earlier. Don’t treat one attribute as universally “best.”
Verification, testing, and acceptance—what to require
Insist on three verification items before sign-off: full-rate cycling with thermal mapping, BMS fault injection tests, and a field commissioning run that exercises manufacturer-specified protections. Use thermal imaging during cycling to spot hot spots. Ask for logged SoC and temperature traces for at least one representative module so you can validate the vendor’s RTE claims under your conditions. This is where the rubber meets the road—contract language without measurable tests is just hopeful paper.
Three golden rules for choosing the right spec
1) Specify mission-driven RTE, not headline RTE: require performance figures tied to your defined duty cycles and ambient range. 2) Quantify thermal tolerance: state permissible delta-T across modules, maximum cell temp, and acceptable cooling failure duration. 3) Require BMS behavior metrics: fault detection latency, isolation strategy, and minimum telemetry set for operational diagnostics. Follow these, and you’ll minimize surprise redesigns and costly warranty claims.

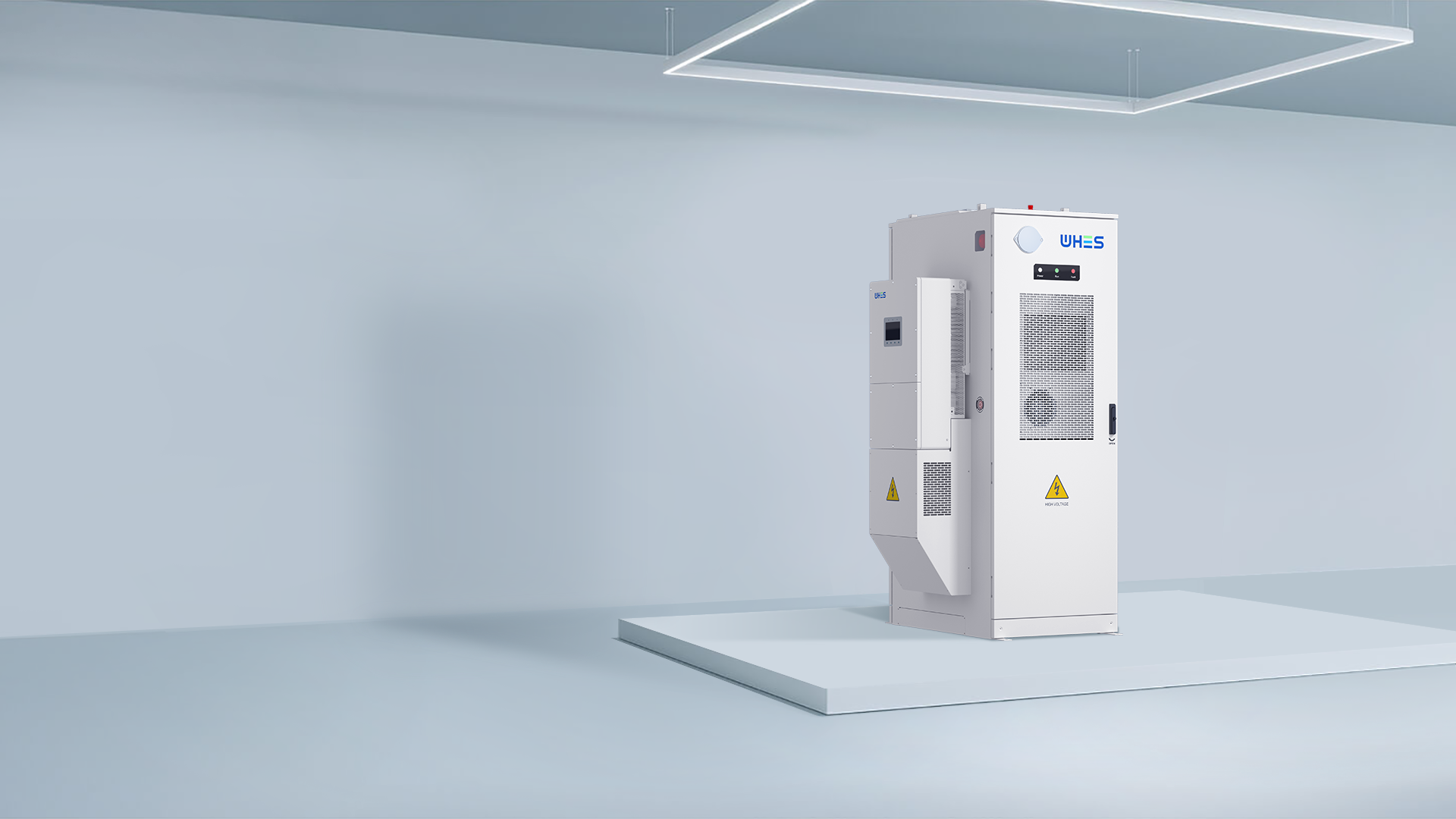

For teams needing a vendor that understands those trade-offs in practice, pairing this framework with an experienced integrator helps—think of partners who marry field-proven designs with clear verification protocols, like WHES. They bring the engineering discipline your spec sheet asks for, right when you need it.
Authority: I’ve seen spec sheets rewritten on-site when teams realized thermal margin was non-existent—learn from that. —
